Genyu 12864 monochrome lcd module china

240x80 dot lcd manufacturers in china

Mode:
GY24080-00
Service:
OEM,ODM,Customization
Payment:
T/T, Western Union,Paypal
Lead Time:
3-4 weeks
Supply Ability:
500K/day
Port:
Shenzhen or Hong Kong
Place of Origin:
Price:

Specifications

Dimention

Application

这里可以自定义设置

Specifictions

We own more than a thousand kinds of LCD modules (LCM).

Model Number : GY24080-00



Products: liquid crystal display (LCD)


1. Feature:
1.   Display Mode:FSTN
2.   PolarizerTransflective/ Positive
3.   Viewing angle:6 O’Clock
4.   Operating temp:-20°C~70°C
5.   Storage temp:-30°C~80°C
6.   Operating voltageVDD=3.0V, Vop=11.4V
7.   Driving condition : 1/80Duty,1/10Bias
8.   ConnectorCOG+FPC
9.   Drive ICST75256
10. ROHS compliant
 2. Mechanical Parameters
Item  Description
Outline size90.4(L)x43(W) x5.5(T)
Viewing Area86×31 mm
Dots size0.31×0.31 mm
Dots pitch0.025×0.025  mm




1). Datasheets

We will provide detailed datasheets of screen/module/driver IC and application circuit to you.


2). Source Code
We can provide whole source code or initial code to you.


3). Technical Support
We have experienced engineers and they will provide you comprehensive technical service.


4). Customizable
We provide customizable service. For example custom FPC, custom PCB, custom module and so on.


5). Solution
If you need a solution with some special function, tell us,we can meet your requirement.


这里可以自定义设置

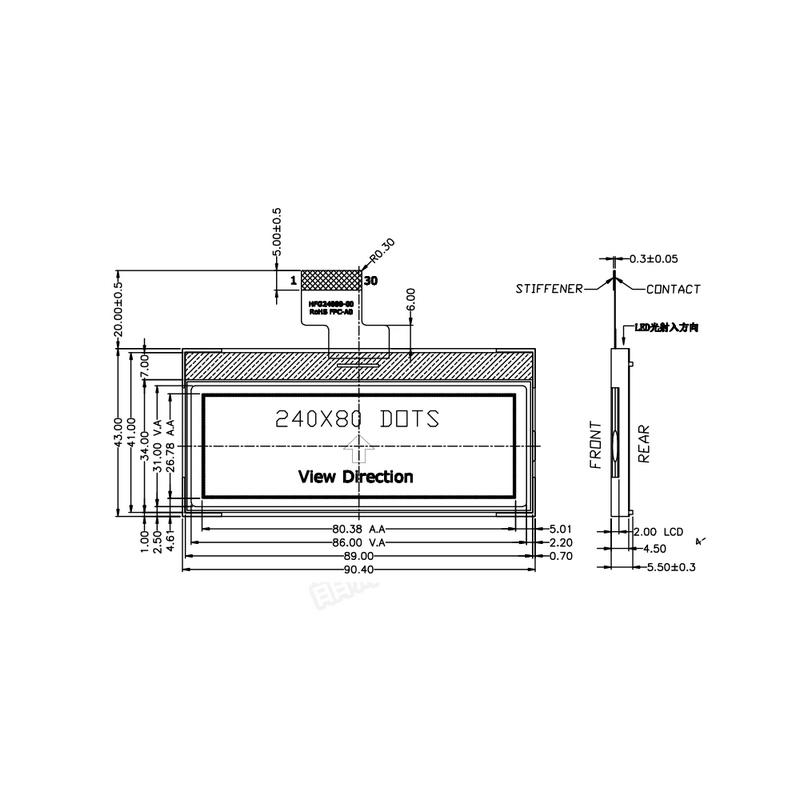

Dimention

(Ta=25℃;Vdd=5.0V±10%,otherwise specified)


这里可以自定义设置

Application

Genyu factory plant area of about 30,000 square meters, the existing staff of about 1000 people.

Genyu Technology(HK)Limited

Shen Zhen Genyu Optical Co.,Ltd.

Genyu COG LCD Screen (Chip-on-Glass LCD screen) monochrome display provides graphic type. Such as 64x64, 96x24, 122x32, 128x32, 128x64, 132x32, 160x32, 160x80, 160x160, 192x64, 240x64, 240x80, 160x128, 240x128, 320x128, A Monochrome LCD is a simple, easy to read and use display solution. we can provide fully custom character and graphic displays. -Genyu LCD Manufacturer. COG LCD Screen, Dot Matrix LCD, COG LCD Display, Chip on Glass LCD Module, Liquid Crystal Display)


- Man-machine interface

- Instrument and instrument

- Medical products

- Equipment control

- Smart meter

- Beauty instrument


这里可以自定义设置
